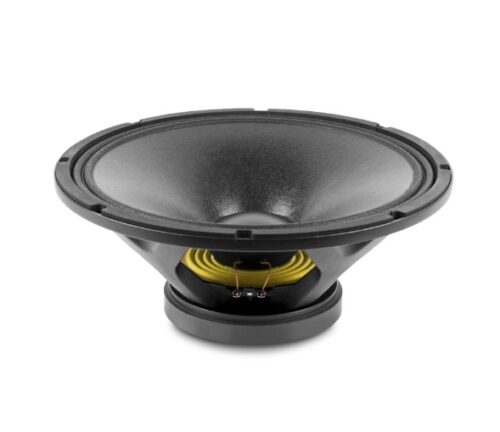

15WR400 PARLANTE 15″ 800W FERRITA 8OHM «BEYMA»

KEY FEATURES

• High power handling: 800 W program power
• 3” copper wire voice coil
• High sensitivity: 99 dB (1W / 1m)
• FEA optimized ceramic magnetic circuit
• Weatherproof cone treatment for both sides of the cone
• Extended controlled displacement: Xmax ± 6,3 mm
• 30 mm peak-to-peak excursion before damage
• Low harmonic distortion and linear response
• Wide range of applications of low and mid-low frequencies

TECHNICAL SPECIFICATIONS

• Nominal diameter: 380 mm 15 in
• Rated impedance: 8 Ω
• Minimum impedance: 6,4 Ω
• Power capacity 1: 400 WAES
• Program power 2: 800 W
• Sensitivity: 99 dB 1W / 1m @ ZN
• Frequency range: 40 – 4.000 Hz
• Recom. enclosure vol.: 70 / 150 l 2,45 / 5,25 ft3
• Voice coil diameter: 76,2 mm 3 in
• Bl factor: 19,2 N/A
• Moving mass: 0,091 kg
• Voice coil length: 16 mm
• Air gap height: 8 mm
• Xdamage (peak to peak): 30 mm
